Master Plumbers May FAQs: Do you know the answers?

Q What R-Value Insulation is Required for Hot Water Pipes?

A To ensure energy efficiency and compliance with plumbing standards, hot water pipework must be insulated to meet minimum R-values. These values are outlined in 3500.4 2025, Table 8.2.1, based on the climate zones listed in Appendix K (Australia) and Appendix L (New Zealand) of the relevant standard.

Storage Water Heaters: Insulate the inlet and outlet pipes (including valves) for at least 500mm. If an external heat trap is installed, insulate to 150 mm down the vertical leg closest to the heater.

Relief Valves: Any relief valve connected directly to a storage water heater must be insulated.

Auxiliary Heaters: Insulate the primary flow and return pipes, including valves, between the auxiliary heater and the storage water heater.

Vent Pipes: Insulate up to 300 mm above the system’s maximum operating water level.

Multiple Heater Installations: Insulate the entire heated water manifold (including valves) to at least 500 mm past the outlet branch of the last heater.

Solar Water Heaters: Insulate all pipework between the solar pre-heater and any in-line supplementary heater.

Proper insulation not only improves energy efficiency but also helps maintain water temperature and reduces heat loss, saving money and improving system performance.

Need immediate clarity? As a Master Plumbers member, you gain exclusive access to our in-house Technical Experts, who are available on-call for immediate advice and solutions to any technical challenge.

Stop guessing and start solving. Discover the full value a Master Plumbers membership brings to you and your business below.

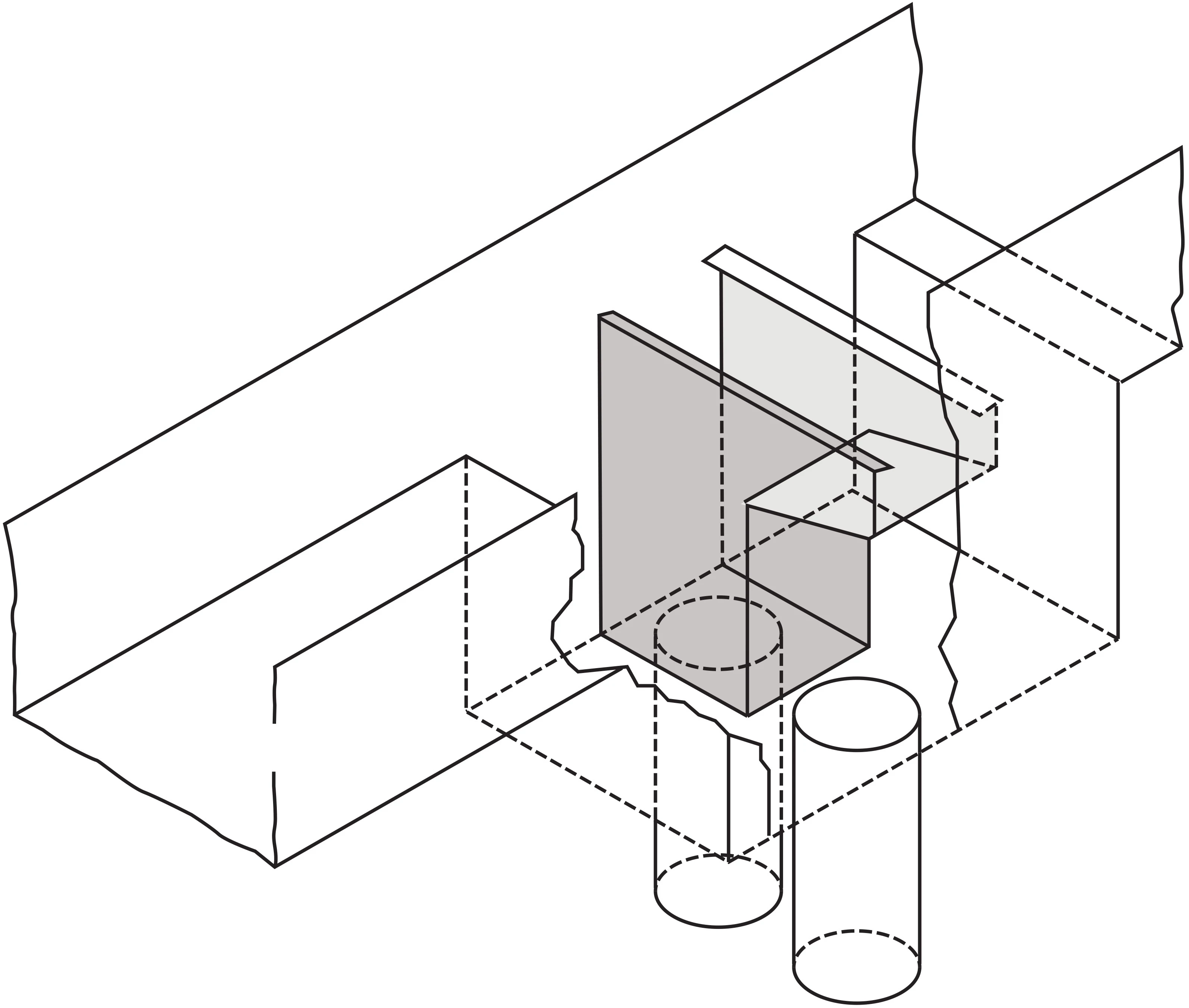

A: No, to satisfy the provisions of the standards, we can only allow for overflow provisions as they are depicted in AS/NZS3500.3 and HB39. High capacity sump depicted in the adjoining image.

With box gutters you would have to use a correctly sized rainhead, sump with side overflow or high-capacity sump, to satisfy the overflow provisions that have been set out.

You can find what these should look like in AS/NZS3500.3:2025, Figure 3.7.3 Overflow devices - Box gutters.

Q: Can I connect my overflow back into the downpipe or storm water drain?

A: No, connecting your overflow back into the downpipe or drain defeats the purpose of the provision for overflow installed.

An overflow is installed to prevent damage or water ingress in case of a blockage to the downpipe or stormwater system.

This is why AS/NZS3500.3, clause 3.7.7.1 calls for the overflow device to discharge to atmosphere.

While we are on the topic of roofing, it is important to remember that when sizing sumps there is a minimum size according to the Australian Standards, regardless of the length you get on completion of your sizing calculations.

Minimum lengths:

• High-capacity sumps must be a minimum of 600mm in length (This can be found in figure H7, AS/NZS3500.3:2025, Appendix H)

• Sumps with side overflow, must be a minimum of 400mm in length (This can be found in figure H5, AS/NZS3500.3:2025, Appendix H)

These are just a sample of the variety of questions the team receives each and everyday. Access to the Master Plumbers Technical Advice team is just one of the many benefits that Master Plumbers (Victoria) members receive along with access to specialists in IR, HR, Health and Safety, as well as a range of discount and support from our commercial partners. For more information, please check out Plumber.com.au

Please note: The information above is based on the Australian standards. Please check with your local regulator and authorities for variations.
