American Standard Cygnet Close Coupled BTW Bottom Inlet Toilet
American Standard Cygnet Close Coupled BTW Bottom Inlet Toilet
American Standard Cygnet Close Coupled BTW Bottom Inlet Toilet
American Standard Cygnet Close Coupled BTW Bottom Inlet Toilet
American Standard Cygnet Close Coupled BTW Bottom Inlet Toilet
American Standard Cygnet Close Coupled BTW Bottom Inlet Toilet

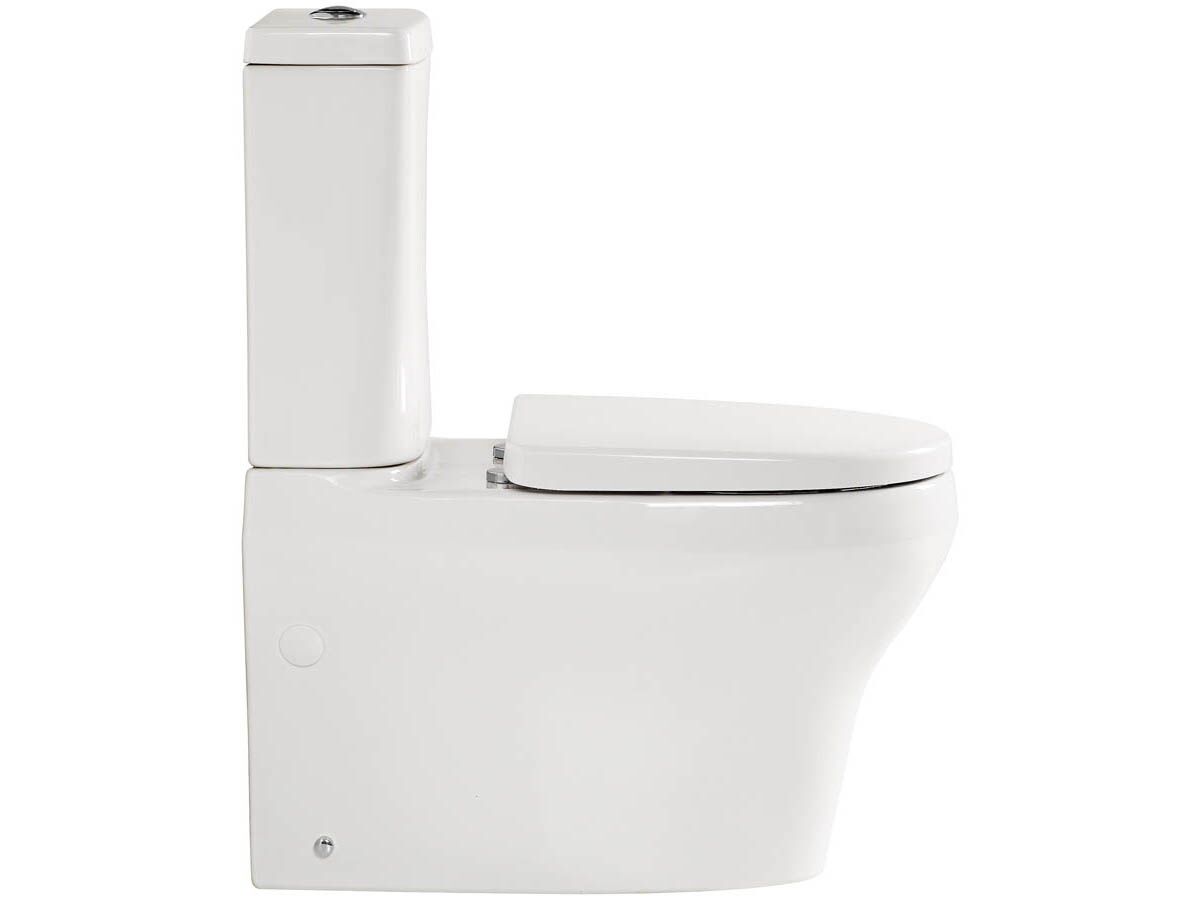

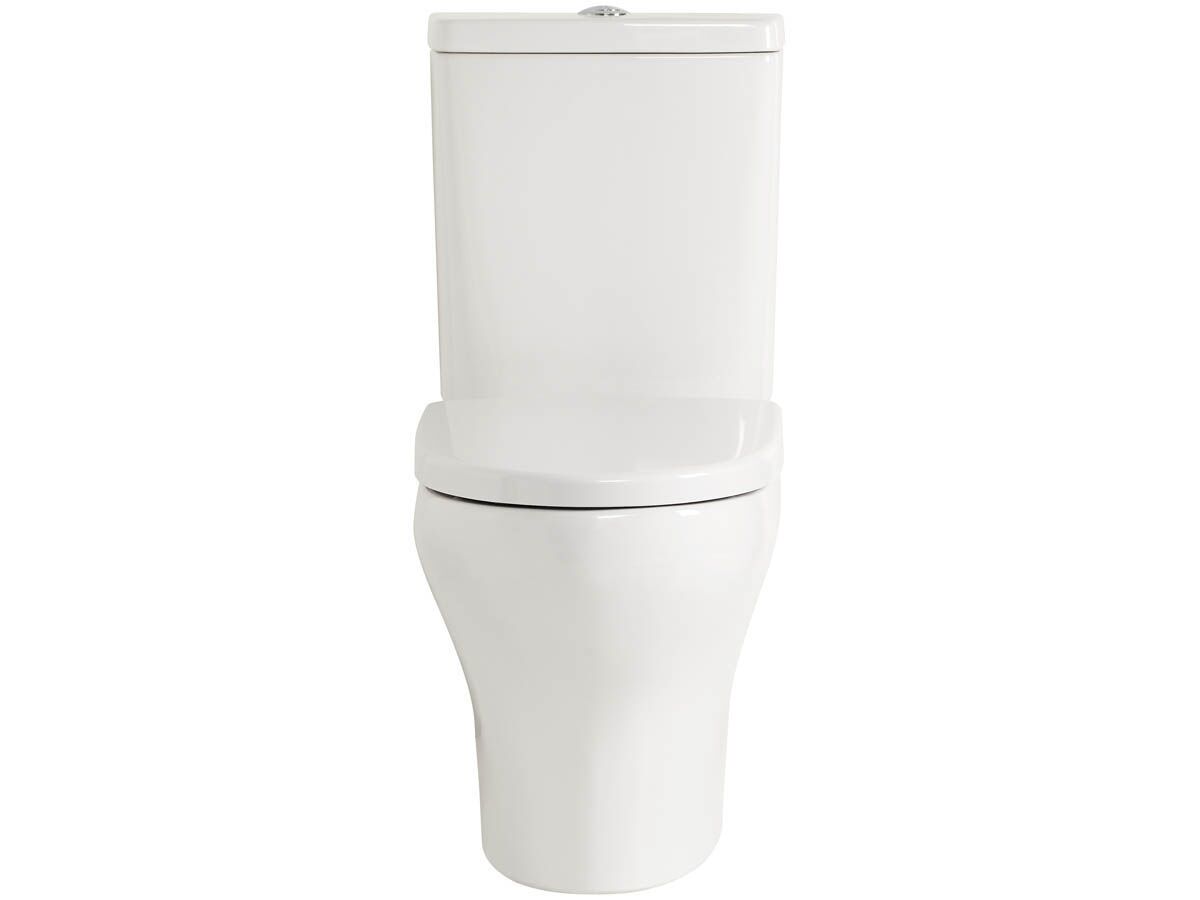

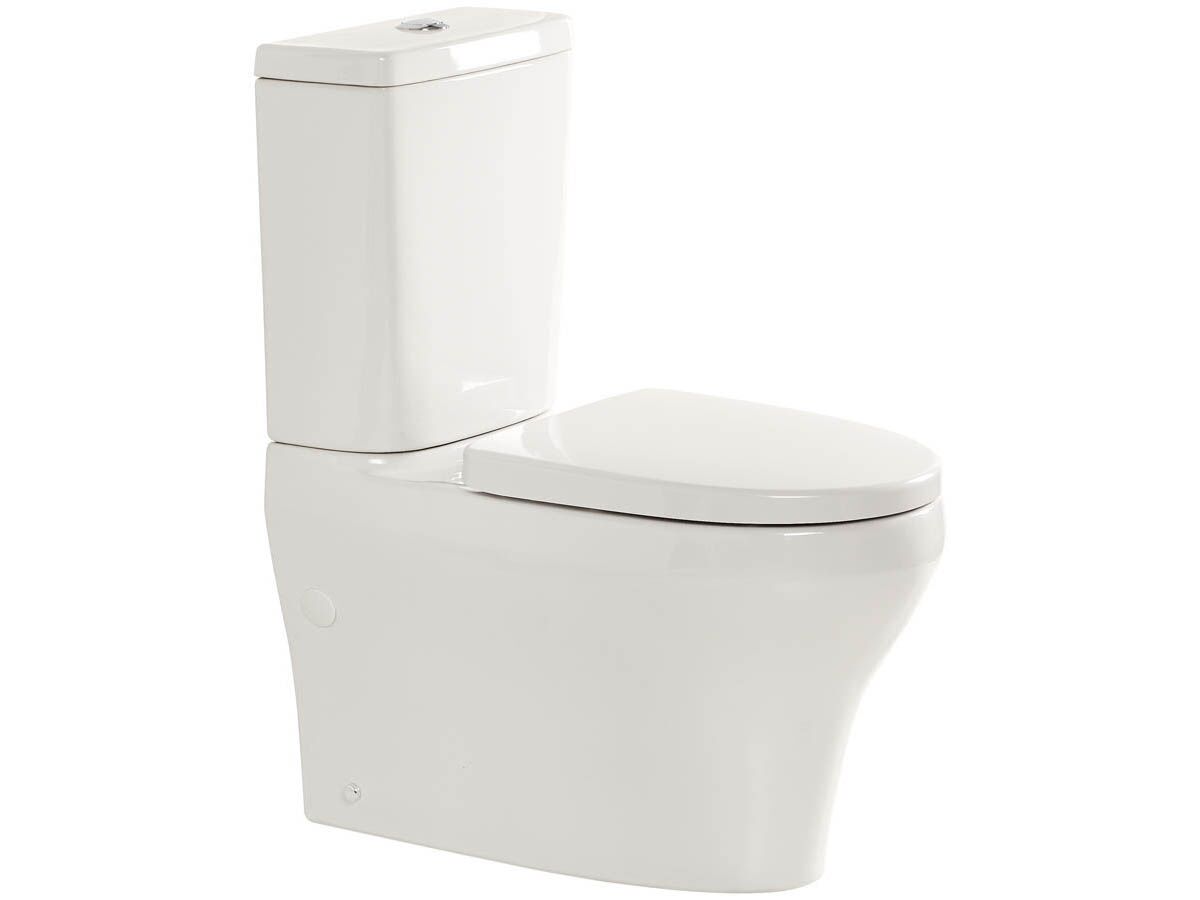

American Standard Cygnet Close Coupled Back to Wall Bottom Inlet Toilet Suite with a Soft Close Quick Release White Seat (4*)

Product Code: 9506401

or login to maX
to see your account pricing

Please enter a valid quantity.
Add
Add to Wishlist
10

Years

Warranty - Domestic Use

Product Summary

Bold yet elegant, the American Standard Cygnet Back To Wall Toilet Suite with bottom inlet features a soft close quick release seat that safely closes and allows for easy cleaning. The square cistern combined with its soft curves makes for a beautifully modern toilet suite.

Specifications

General Information
Inlet Availability Also available in Back Inlet
Recommended Use Domestic, Hotel and Commercial
Rim Configuration Box Rim
Toilet Seat Soft Close Quick Release
Finish
Colour White
Toilet Suite Colour White
Material
Cistern Material Vitreous China
Pan Material Vitreous China
Toilet Seat Material Polypropylene (PP)
Technical Information
Cistern Fixing Bolted directly to pan
Outlet Type P Trap/S Trap using conversion bend (supplied)
Pan Fixing Screwed to the floor using brackets (supplied) and bedded with sealant

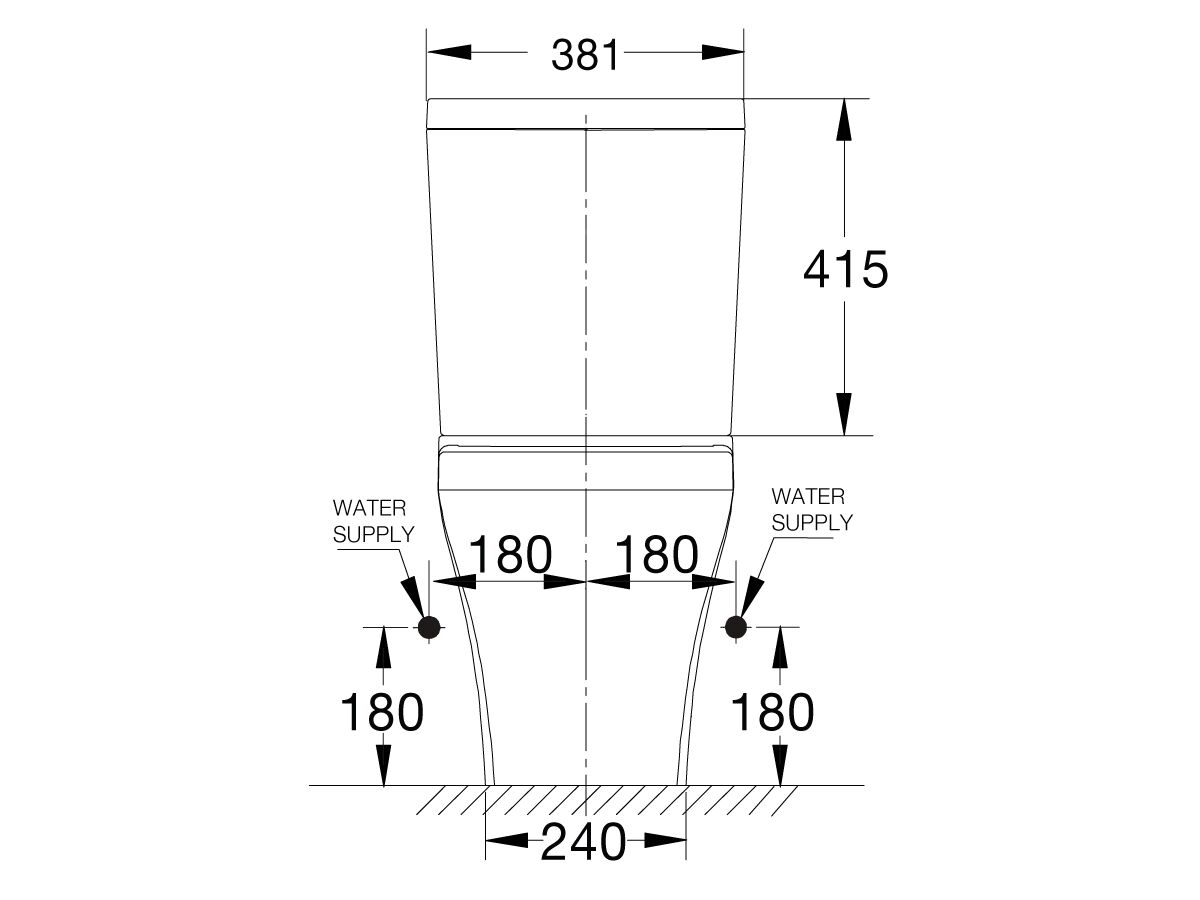

Water Inlet Position Bottom Inlet (Reversible right or left)
Pressure Information
Inlet Valve Recommended Maximum Pressure 500 kPa
Size and Dimensions

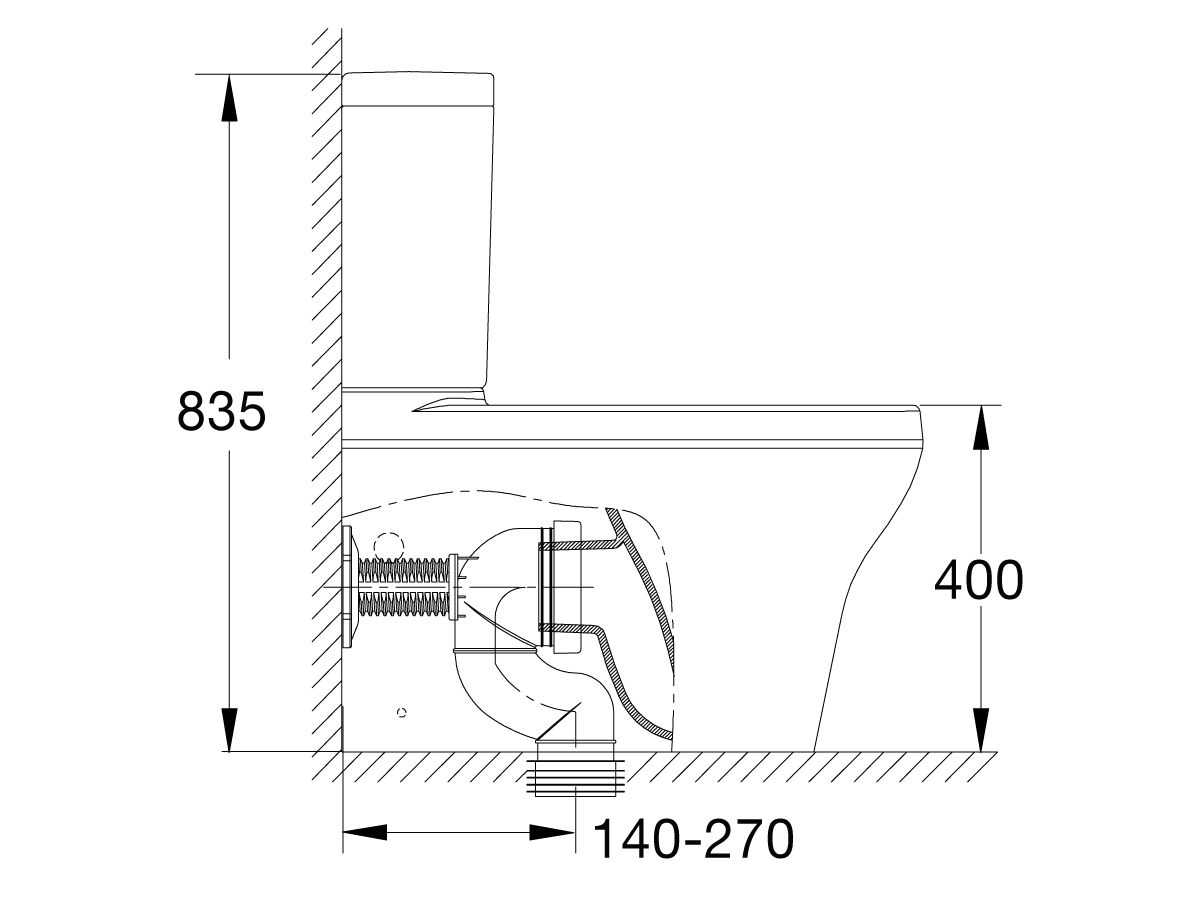

Height 835 mm
Pan Height 400 mm

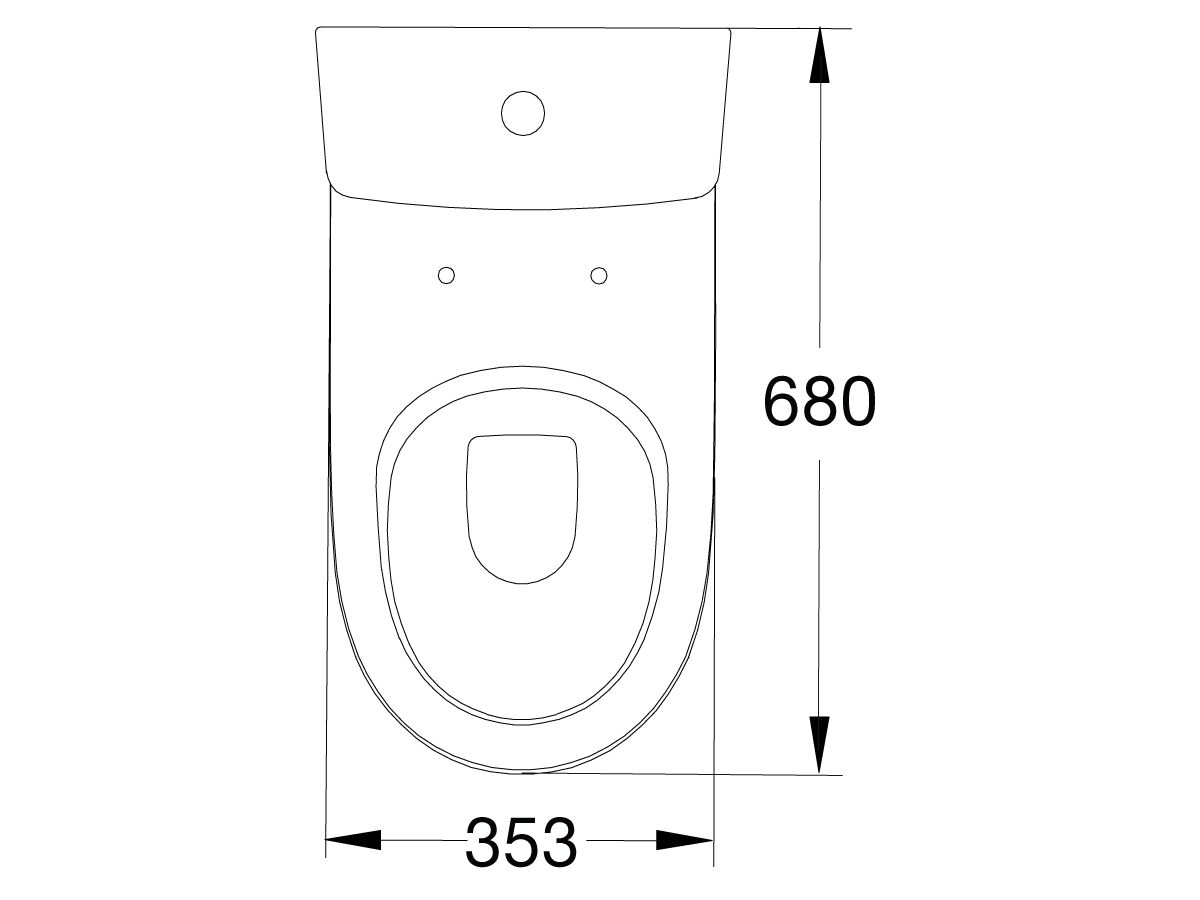

Projection 680 mm
P Trap Setout 190 mm
S Trap Max Setout 270 mm
S Trap Min Setout 140 mm
Weight of Cistern 13 kg
Weight of Pan 34 kg
WELS
Rating 4 Star Rating
Measure 3.5 Average Ltrs Per Flush

Warranty

Warranty
Warranty - Domestic Use 10 Years
Warranty - Commercial Use 12 Months
Spare Parts and Labour 12 Months
Warranty Information For full warranty terms and conditions please refer to the American Standard Warranty document
