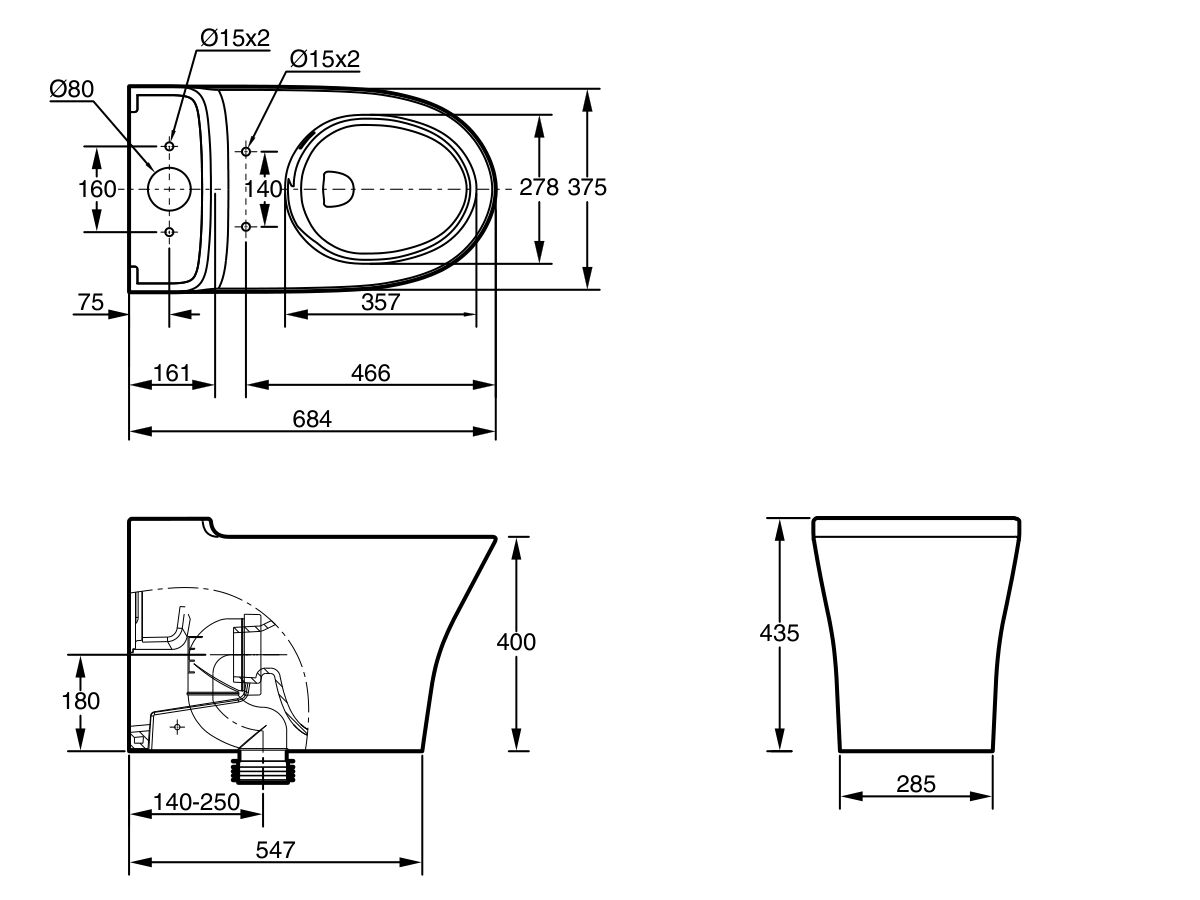

American Standard Signature Hygiene Rim Close Coupled Back to Wall Back Inlet Pan White (4 Star) from Reece

Recommended Use	Commercial, Domestic & Hotel
Product Type	Toilet
Toilet Configuration	Back to Wall & Close Coupled
Rim Configuration	Hygiene
Mounting	Floor
Pan Outlet Type	S Trap with Supplied Conversion Bend
Water Inlet Position	Back
Colour Category	White
Colour Finish	White
Primary Material	Vitreous China
Pan Material	Vitreous China
Width	375 mm
Pan Height	400 mm
Pan Projection	684 mm
P Trap Setout	180 mm
S Trap Minimum Setout	140 mm
S Trap Maximum Setout	250 mm
Weight of Pan	34 kg
Fixing Bolts Included	Yes
Cistern Included	No
Seat Included	No
Maximum Continuous Working Pressure	500 kPa
WELS Registration Number	L06324
Water Efficiency Star Rating	4 Star
Average Litres per Flush	3.5 L
Full Flush	3.3 L
Half Flush	3.01 L

Domestic Use	10 Years
Commercial Use	1 Years
Spare Parts & Labour	1 Years
Warranty Information	For full warranty terms and conditions please refer to the American Standard Warranty document
