AXA Uno Rimless Back to Wall Pan Soft Close Quick Release Seat White (4 Star)

Product code: 9509198

View Product Specifications

AXA Uno

Crafted within its Civita Castellana studios in Italy, AXA takes bathroom product design in an exciting new direction. The AXA Uno Rimless Back to Wall Pan delivers striking and elegant soft square designwith the easy cleaning benefits of Rimless technology.

Recommended Use	Commercial, Domestic & Hotel
Product Type	Toilet
Toilet Configuration	Back to Wall
Rim Configuration	Rimless
Mounting	Floor
Seat Type	Soft Close & Quick Release
Pan Outlet Type	P Trap & S Trap
Colour Category	White
Colour Finish	White
Seat Colour	White
Primary Material	Vitreous China
Pan Material	Vitreous China
Seat Material	Urea

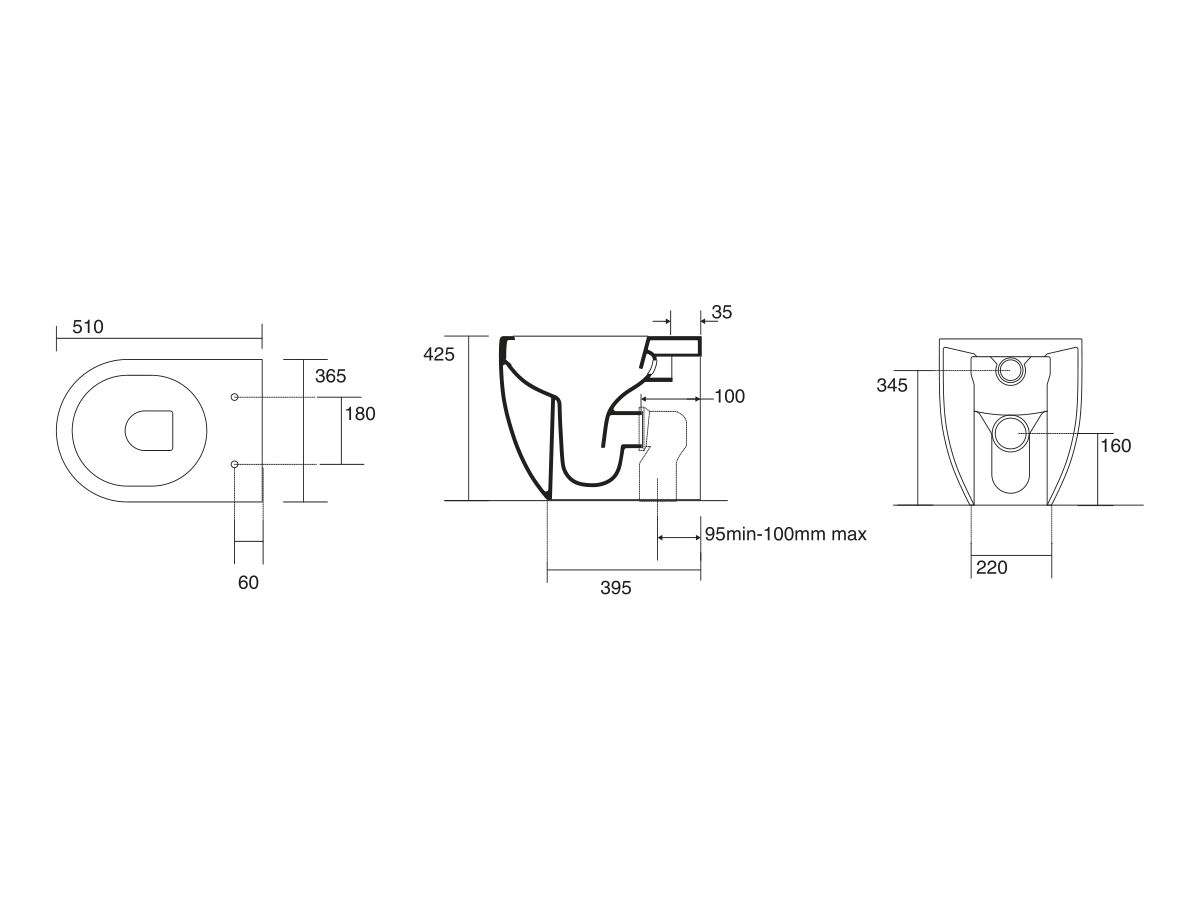

Width	365 mm
Pan Height	425 mm
Pan Projection	510 mm
Pan Width	365 mm
Length from Bolts to Front of Pan	450 mm
P Trap Setout	160 mm
S Trap Minimum Setout	95 mm
S Trap Maximum Setout	100 mm
Weight of Pan	27 kg
Fixing Bolts Included	Yes
Cistern Included	No
WELS Registration Number	L05757
Water Efficiency Star Rating	4 Star
Average Litres per Flush	3.3 L
Full Flush	4.5 L
Half Flush	3 L

Domestic Use	15 Years
Commercial Use	1 Years
Spare Parts & Labour	1 Years
Warranty Information	For full warranty terms and conditions please refer to the AXA Warranty document
