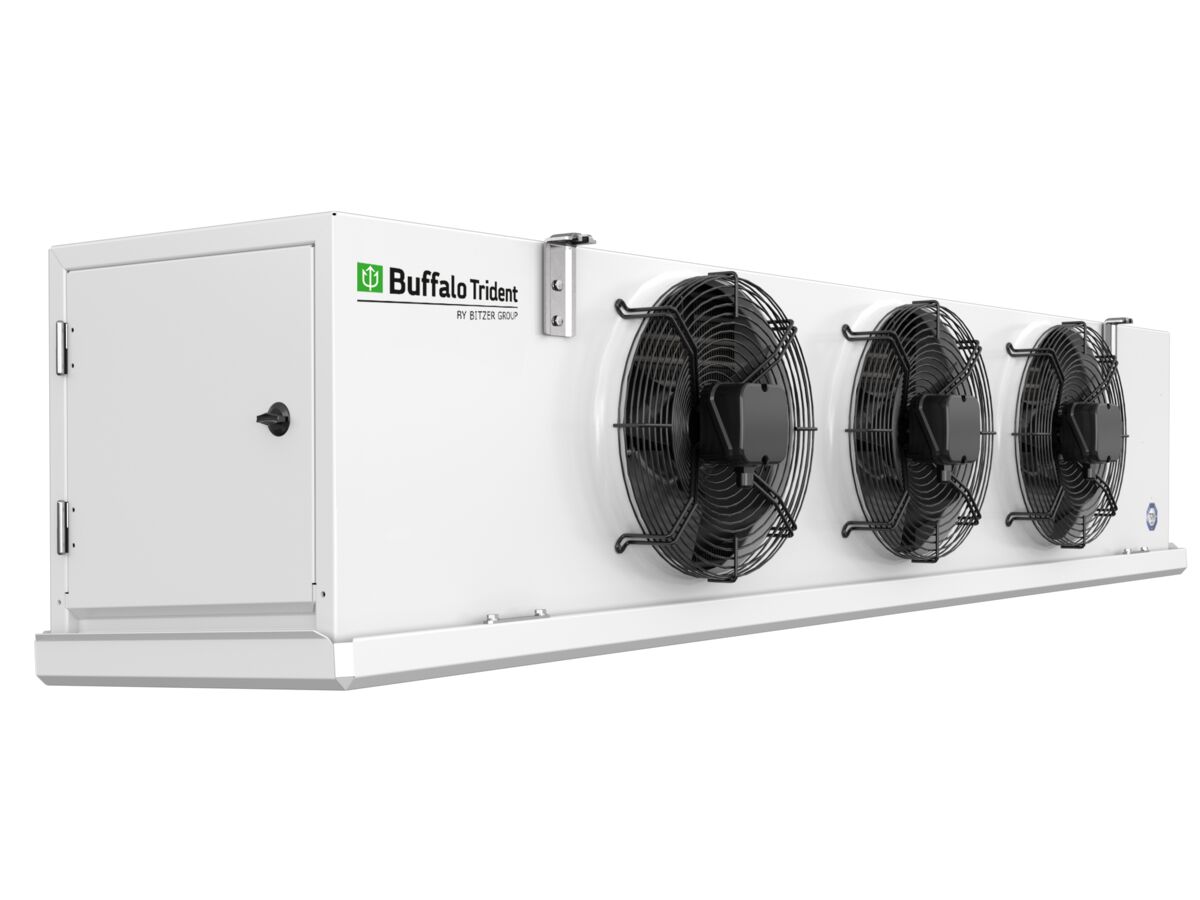

Buffalo Evaporator Low Temperature with Electronic Expansion Valve and Ultracapacitor GACC093LACE1 GACC RX040.1/3-70.E 1846010E
Product code:
3509158
View Product Specifications
Product Specifications
Back
Model Number
GACC093LACE1
Application (Condensing Unit)
Low Back Pressure
Length
2366 mm
Height
565 mm
Suction Connection Size
1 3/8 "
Liquid Connection Size
7/8 "
Fan Diameter
400 mm
Weight
76 kg
Number of Fans
3
Fan MOC
0.85 A
Sound Power Level
77 dBA
Buffalo Evaporator Low Temperature with Electronic Expansion Valve and Ultracapacitor GACC093LACE1 GACC RX040.1/3-70.E 1846010E
