Caroma Junior Bottom Entry "S" Trap Pan White (4 Star)

Product code: 1854908

Caroma Junior

A reduced height toilet pan specially designed for infants. The Junior pan can be coupled with the range of Caroma cisterns for optimum matched suite performance.

Features	-Junior exposed S trap pan Seat sold separately, suitable with junior seat Includes low level flush pipe To achieve a WELS 4 star rating, this pan should be installed with a 4.5/3L connector cistern, Sovereign or Slimline recommended WELS 4 star rated, 4.5/3L (3.5L avg/flush)
Model Number	713301W
Mounting	Floor
Pan Outlet Type	S Trap
Colour Category	White
Colour Finish	White
Primary Material	Vitreous China

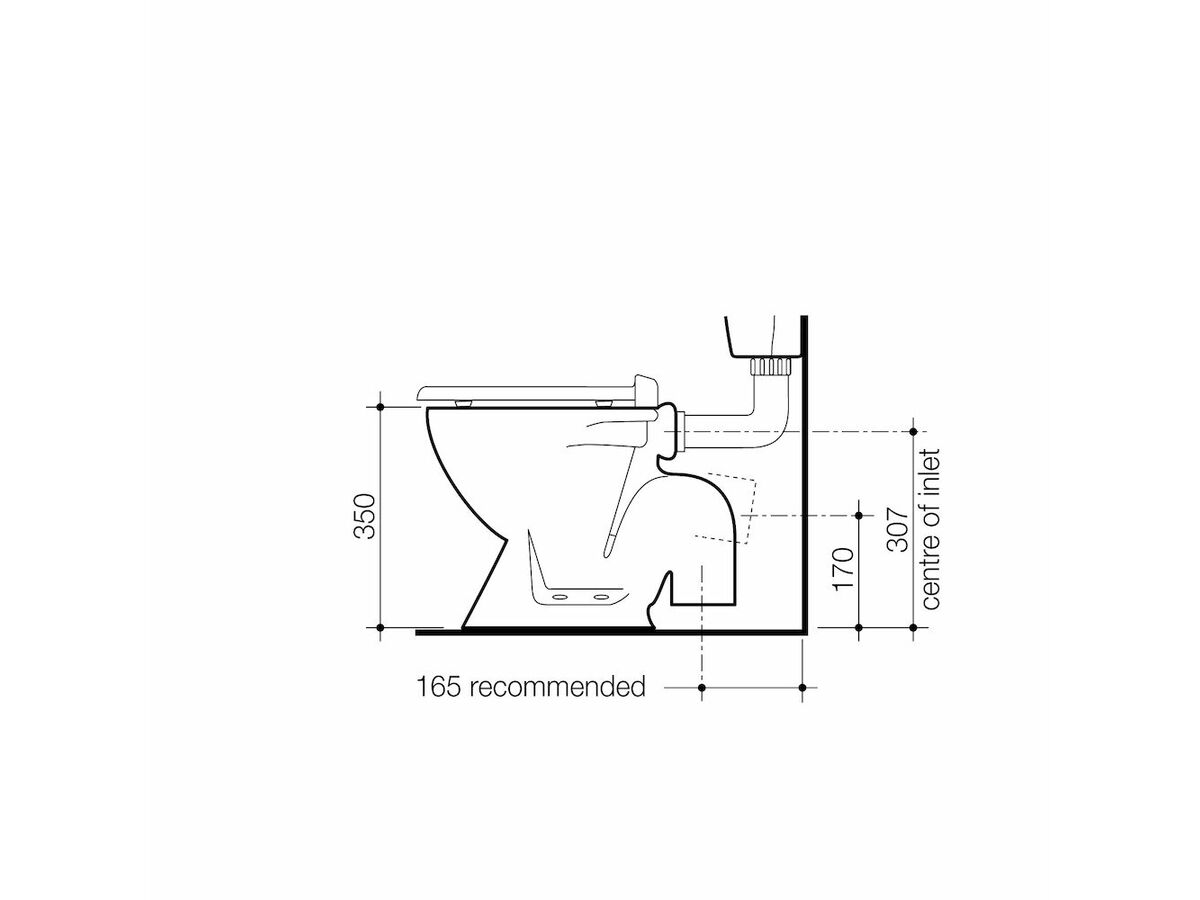

Pan Height	350 mm
P Trap Setout	170 mm
S Trap Minimum Setout	165 mm
S Trap Maximum Setout	165 mm
Cistern Included	No
WELS Registration Number	L02374
WELS Licence Number	0001
Water Efficiency Star Rating	4 Star
Average Litres per Flush	3.5 L
Full Flush	4.5 L
Half Flush	3 L

Domestic Use	20 Years
Commercial Use	20 Years
Spare Parts & Labour	1 Years
