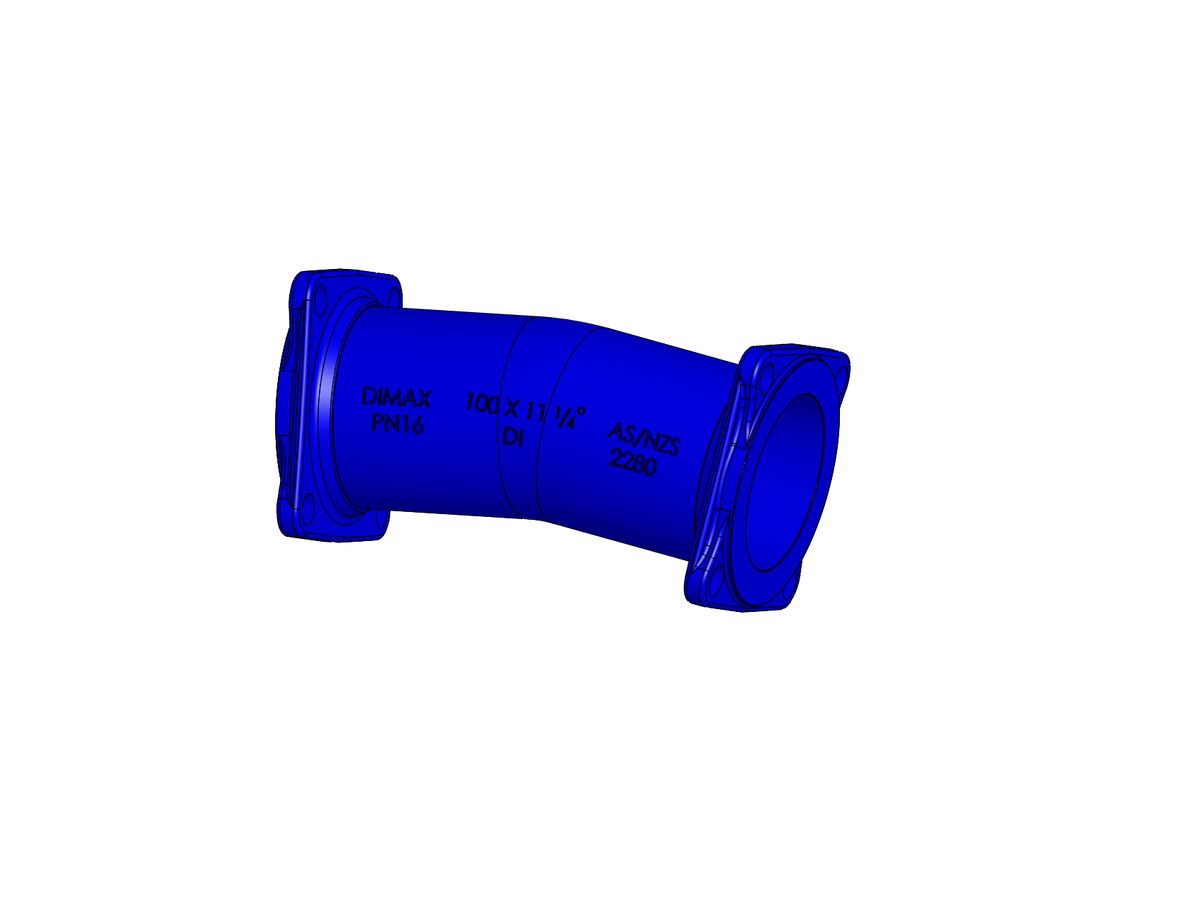

Dimax Bend Flanged PN16 B5 100mm x 11.25 Degree
Product code:
1281940
View Product Specifications
Product Specifications
Warranty Information
Documents and Downloads
Back
Pipe/Fitting Type
Elbow
Primary Material
Ductile Iron
Primary Nominal Size
100 mm
Primary Connection Type
Flange
Pressure Rating
PN16
Product Warranty
5 Years
Learn about our
Product Quality Guarantee
Specification, Manuals & Installation
Product Guide - Dimax Valve and Fittings
View
Specification Sheet - Dimax Ductile Iron DN80-300 AS/NZS 2280 Fittings
View
Warranty
Warranty - Dimax
View
Dimax Bend Flanged PN16 B5 100mm x 11.25 Degree
