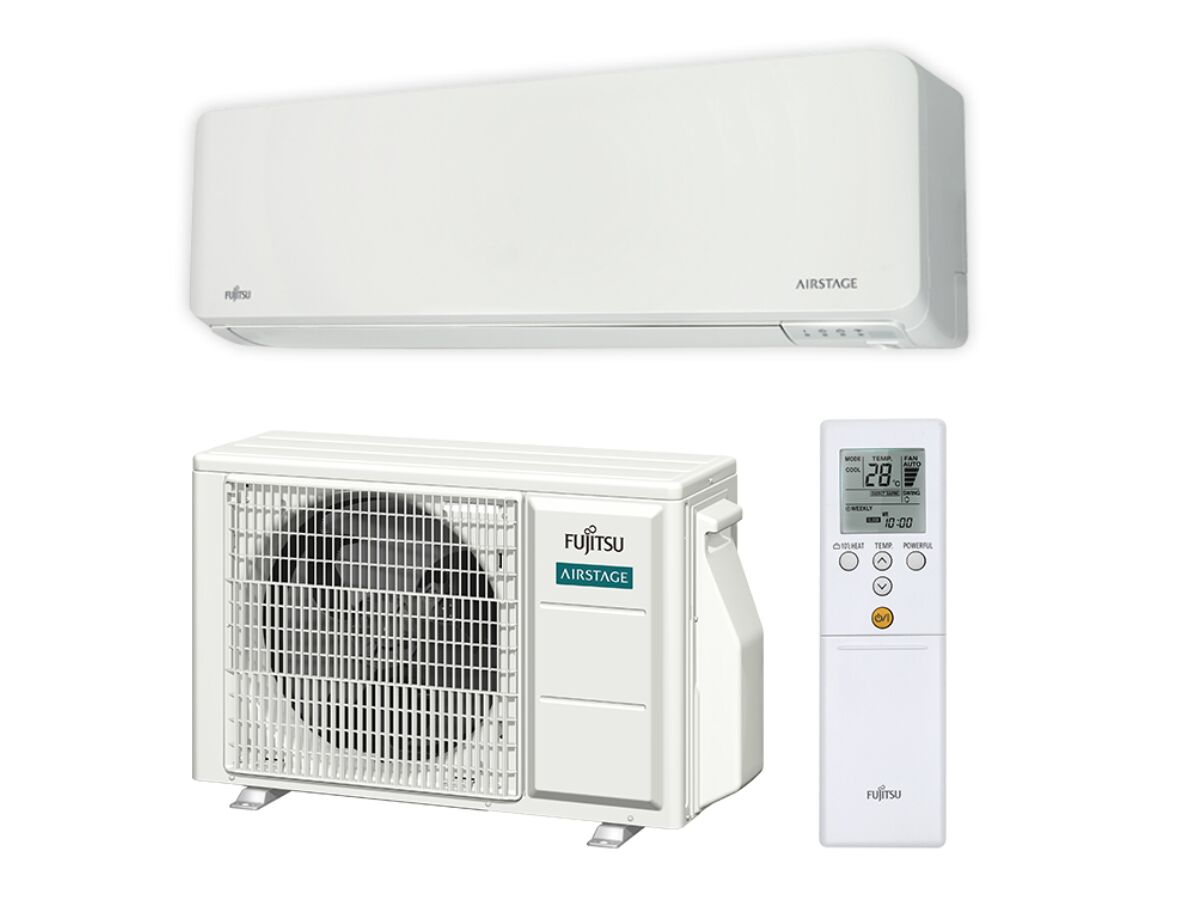

Fujitsu Wall Mounted Air Conditioner ASTG09KMTC 2.5kW
Product code:
3102341
View Product Specifications
Product Specifications
Documents and Downloads
Back
Model Number
SET-ASTG09KMTC
Liquid Connection Size
1/4 "
Gas Connection Size
3/8 "
Indoor Unit Height
270 mm
Indoor Unit Width
834 mm
Indoor Unit Depth
222 mm
Outdoor Unit Height
542 mm
Outdoor Unit Width
799 mm
Outdoor Unit Depth
290 mm
Indoor Unit Weight
10 kg
Outdoor Unit Weight
32 kg
Cooling Capacity
2.5 kW
Cooling Input
0.53 kW
Energy Star Rating - Cooling
5 Star
Heating Capacity
3.2 kW
Heating Input
0.66 kW
Phase
Single Phase
Nominal Power Supply
230V AC
Maximum Pipe Length
20 m
Maximum Height Difference
15 m
Cooling Star Rating (Hot)
5.5
Cooling Star Rating (Average)
5
Cooling Star Rating (Cold)
5.5
Heating Star Rating (Hot)
3.5
Heating Star Rating (Average)
3
Heating Star Rating (Cold)
3
Energy Star Rating - Heating
3 Star
Brochure - Fujitsu Lifestyle Range
View
Brochures
Brochure - Fujitsu Lifestyle Range
View
Fujitsu Wall Mounted Air Conditioner ASTG09KMTC 2.5kW
