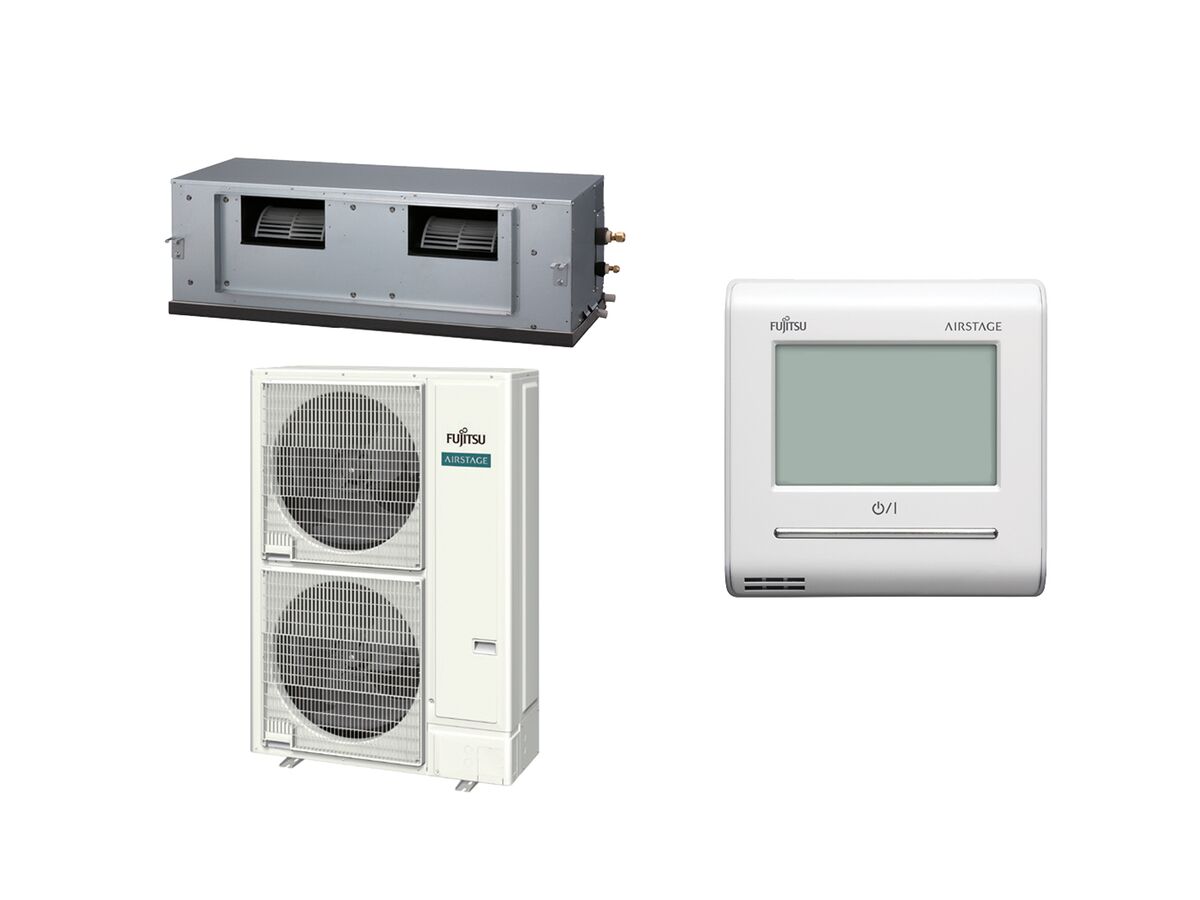

Fujitsu Ducted Air Conditioner 16.0kWSET-ARTH60KHTA-3PH
Product code:
3120088
View Product Specifications
Product Specifications
Documents and Downloads
Back
Model Number
SET-ARTH60KHTA-3PH
Liquid Connection Size
3/8 "
Gas Connection Size
5/8 "

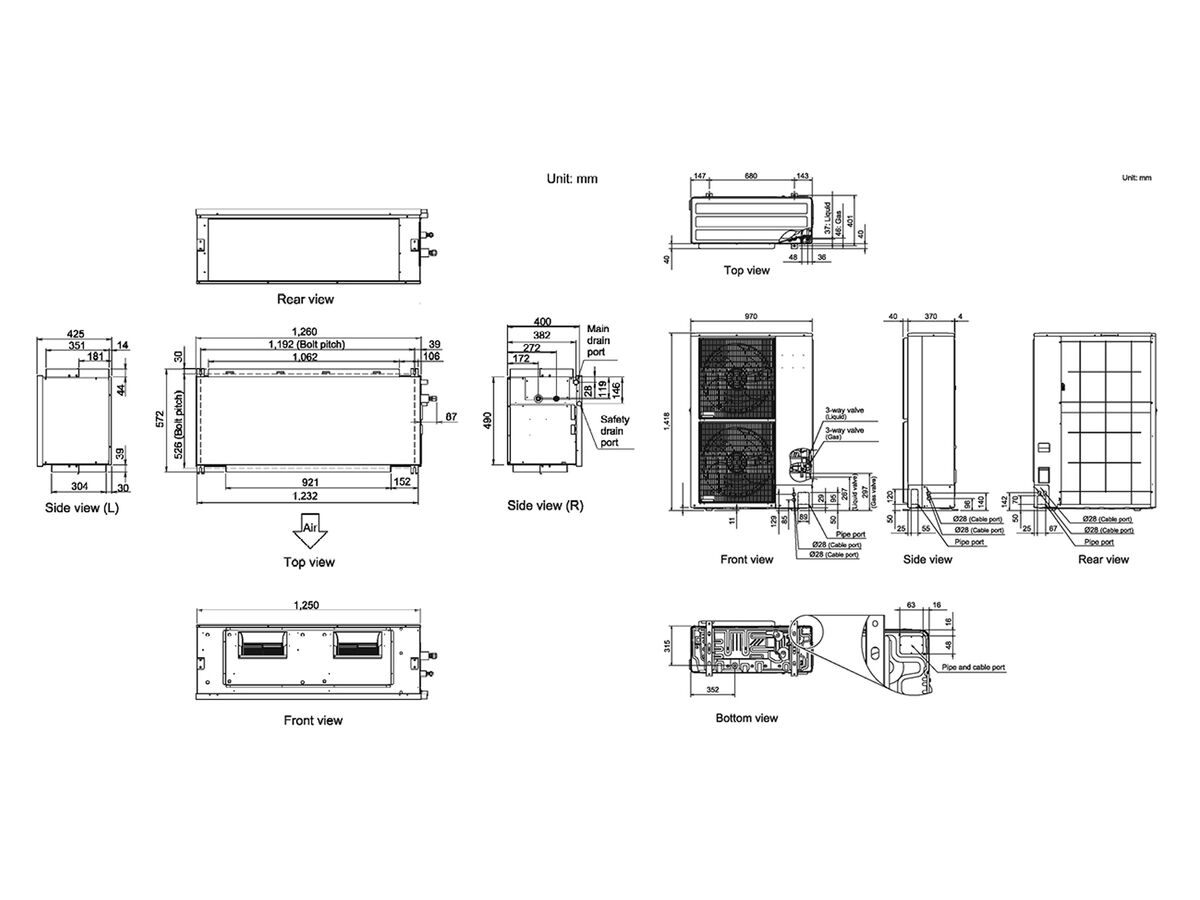

Indoor Unit Height
425 mm
Indoor Unit Width
1250 mm
Indoor Unit Depth
490 mm
Outdoor Unit Height
1418 mm
Outdoor Unit Width
970 mm
Outdoor Unit Depth
370 mm
Indoor Unit Weight
53 kg
Outdoor Unit Weight
96 kg
Cooling Capacity
15.5 kW
Heating Capacity
18 kW
Phase
Three Phase
Nominal Power Supply
400V AC
Maximum Pipe Length
50 m
Maximum Height Difference
30 m
Specification, Manuals & Installation
Product Information Sheet - Fujitsu Ducted 16.0kw Set-Arth60khta-3ph
View
Fujitsu Ducted Air Conditioner 16.0kWSET-ARTH60KHTA-3PH
