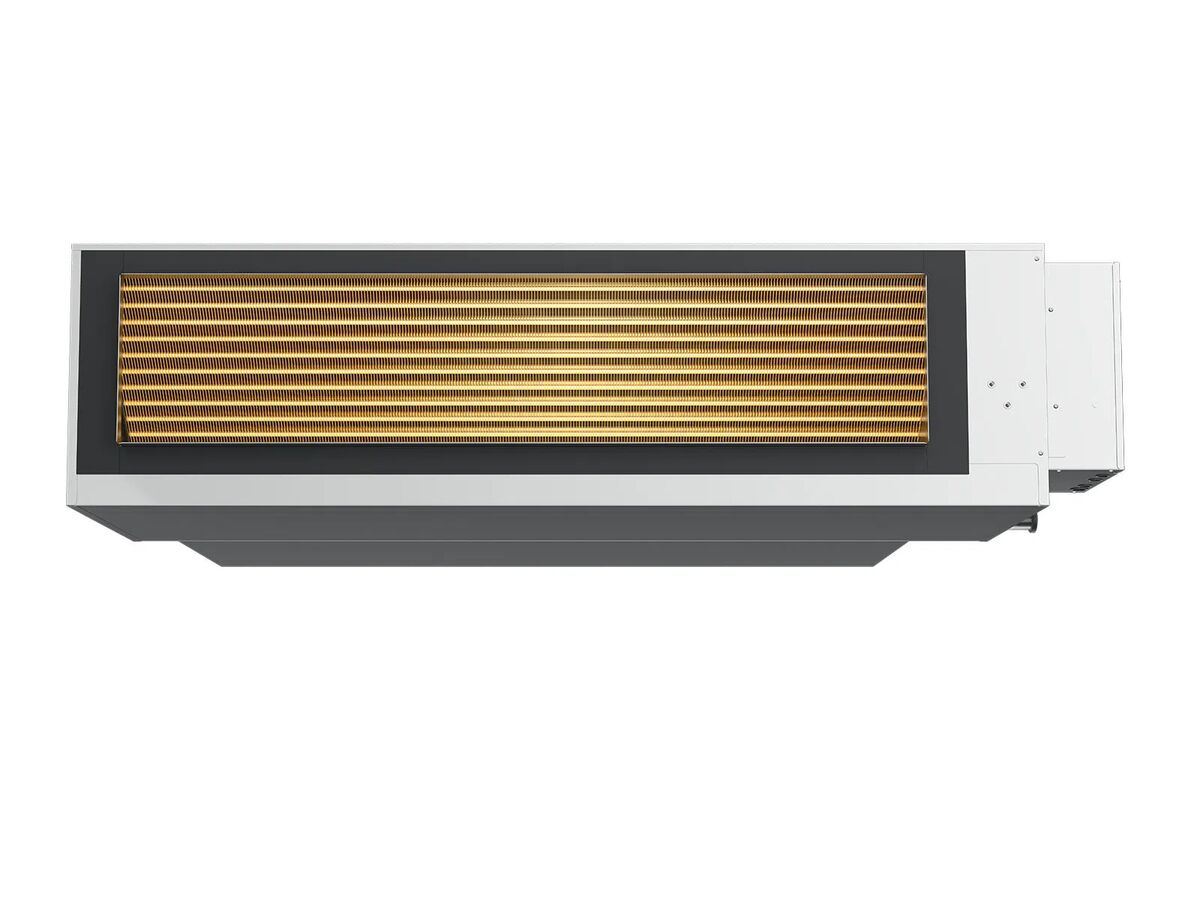

TCL R32 High Static Ducted System Air Conditioner 10kW from Reece

Features	200PA High Static Pressure Full DC Design Built-in Condensate Pump Ultra Thin Design Wi-Fi Operation Wired Controllers Zone Control Long Pipe Length Design Self Cleaning Function
Model Number	TCD100D1HWH-DV
Heating & Cooling Product Type	Ducted Air Conditioner
Refrigerant Type	R32
Liquid Connection Size	3/8 "
Gas Connection Size	5/8 "
Indoor Unit Height	380 mm
Indoor Unit Width	1510 mm
Indoor Unit Depth	945 mm
Outdoor Unit Height	1010 mm
Outdoor Unit Width	858 mm
Outdoor Unit Depth	436 mm
Indoor Unit Weight	66 kg
Outdoor Unit Weight	73 kg
Cooling Capacity	10.5 kW
Cooling Input	2.48 kW
Heating Capacity	12.5 kW
Heating Input	2.9 kW
Phase	Single Phase
Nominal Power Supply	220 - 240V 50Hz
Maximum Pipe Length	50 m
Maximum Height Difference	30 m

User Manual - TCL R32 High Static Ducted System Air Conditioner View

User Manual - TCL R32 High Static Ducted System Air Conditioner View

Specification Sheet - TCL R32 High Static Ducted System Air Conditioner View
