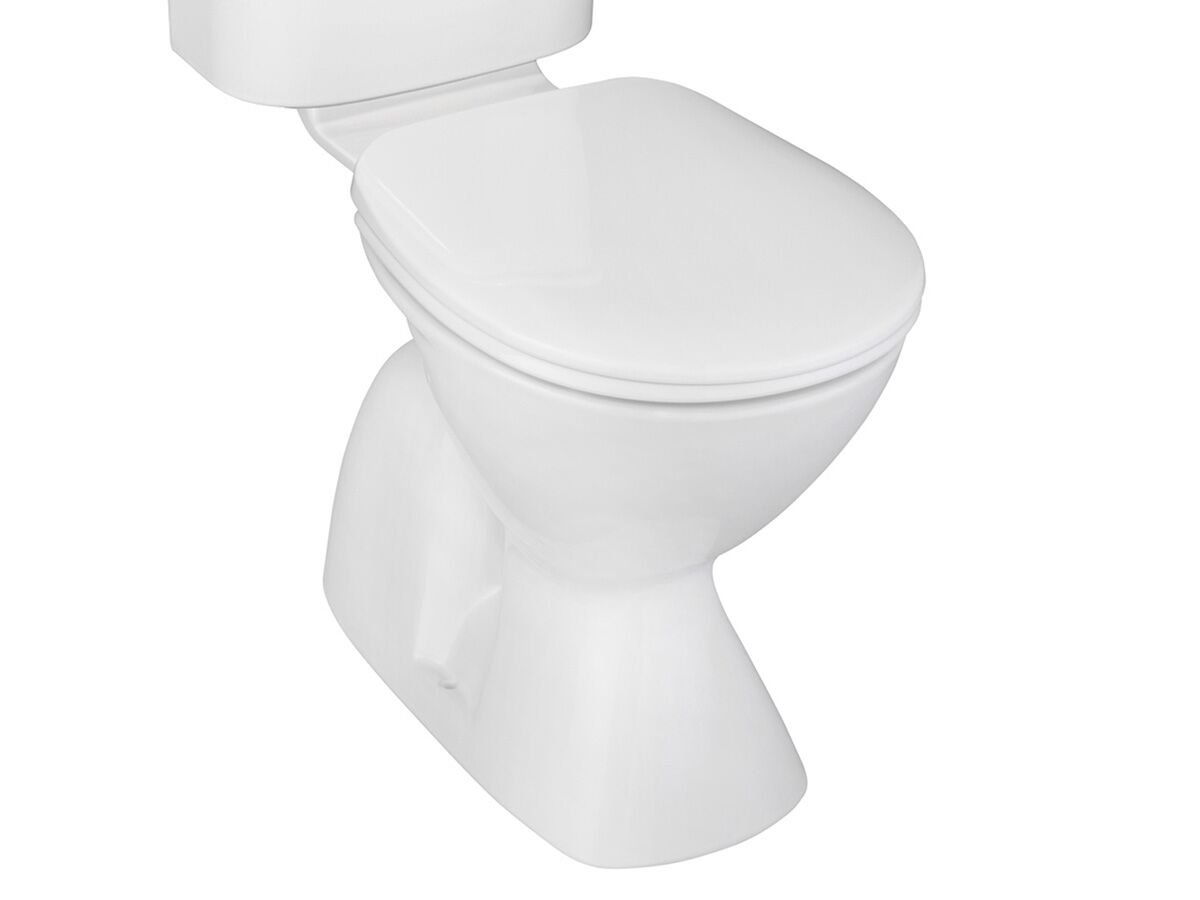

Stylus Connector S Trap Toilet Pan White (4 Star)
Product code:
2004468
View Product Specifications
Product Specifications
Warranty Information
Documents and Downloads
Back
Features
To achieve a WELS 4 star rating this pan should be used with the Tasman connector cistern Back inlet S or P trap available Seat sold separately Tasman seat options recommended Open Rim
Toilet Configuration
Link Connected
Model Number
STY911
Mounting
Floor
Colour Category
White
Colour Finish
White
Primary Material
Vitreous China

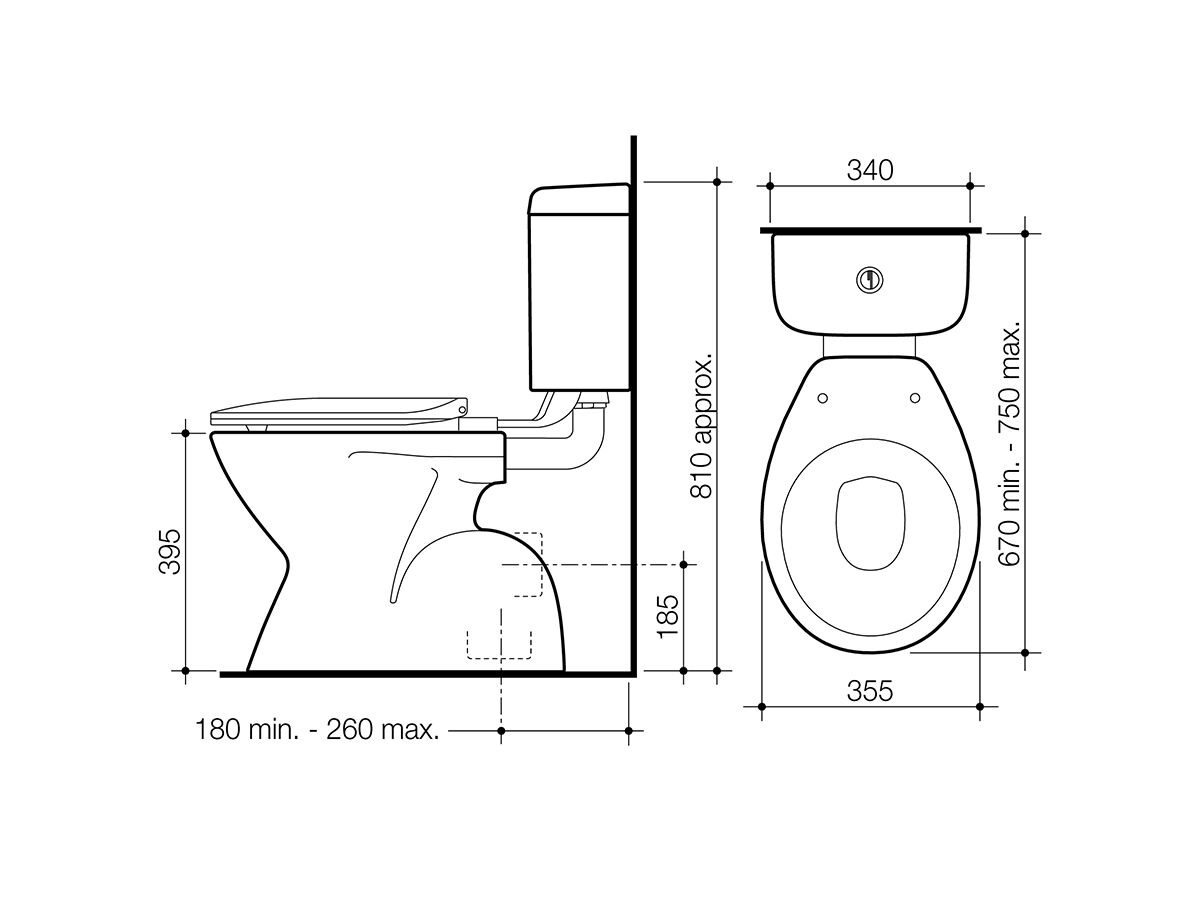

Pan Height
395 mm
Pan Projection
670 mm
Pan Width
355 mm
P Trap Setout
185 mm
S Trap Minimum Setout
180 mm
S Trap Maximum Setout
265 mm
Cistern Included
No
WELS Registration Number
L02799
Water Efficiency Star Rating
4 Star
Average Litres per Flush
3.3 L
Full Flush
4.5 L
Half Flush
3 L
