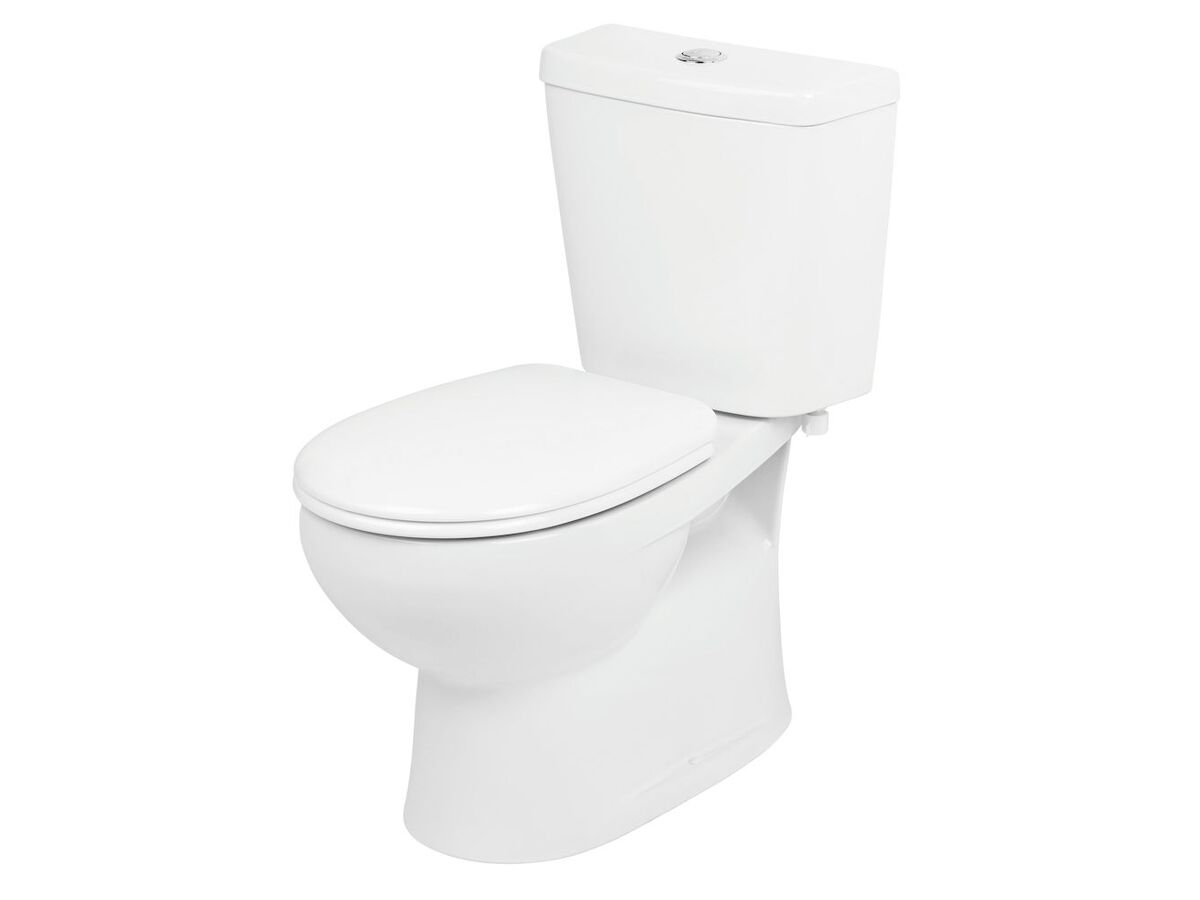

Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star)

Venecia Close Coupled S Trap Toilet Suite Standard Close Seat White (4 Star)

Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star)

Product code: 1815430

View Product Specifications

Stylus Venecia

The neatly designed Venecia toilet suites add a modern touch to any bathroom.

Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star)

Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star)

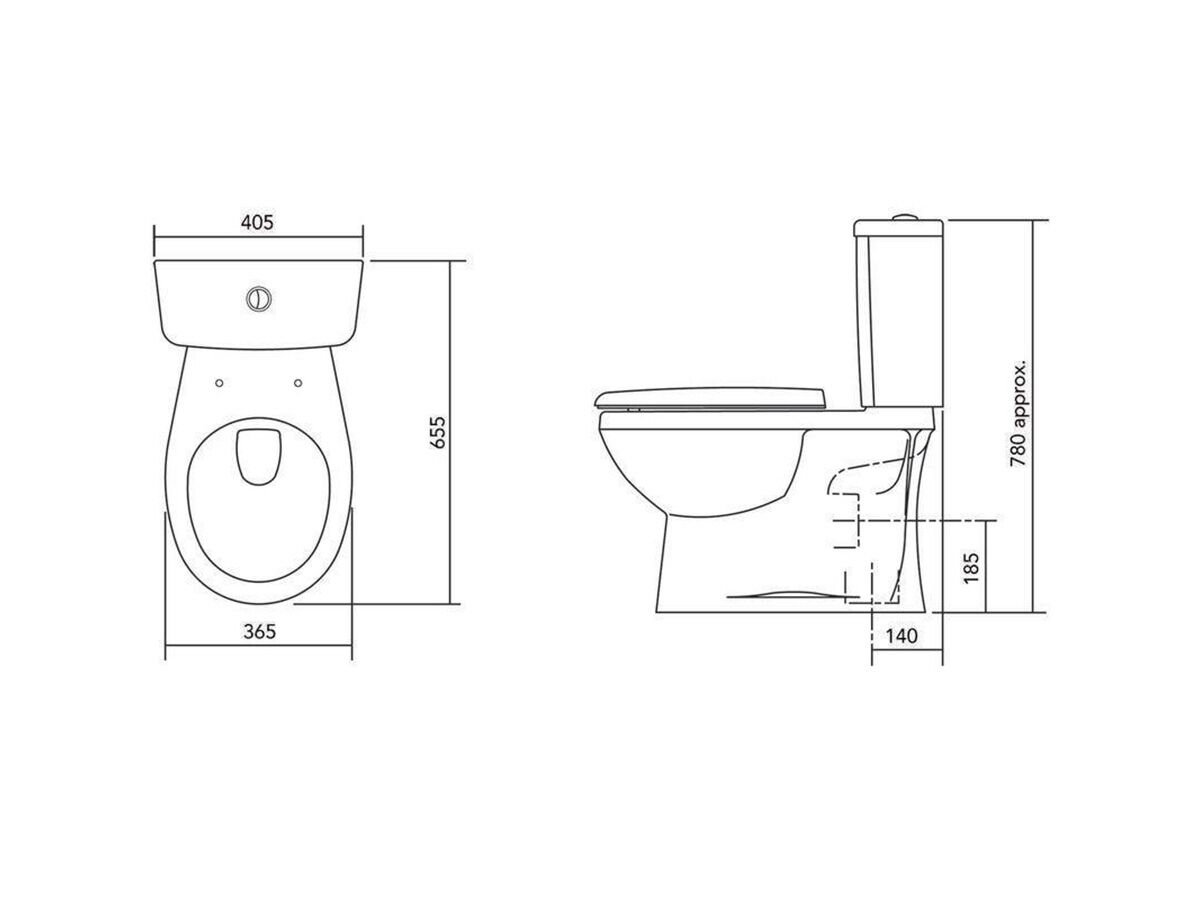

Size and Dimensions

S Trap Max Setout	180 mm
S Trap Min Setout	100 mm

Inclusions and Exclusions

Items Sold Separately	Optional offset connector available (687270) to extend the S trap setout range to 100mm - 180mm
Inclusions	Standard close seat included.
	Standard close seat included.

Features

	WELS 4 star rated, 4.5/3L
	Chrome buttons included
	Soft close or standard seat Available
	Bottom Inlet cistern
	Concealed S trap or exposed P trap Available
	Emerald close coupled pan
	Optional offset connector available (687270) to extend the S trap setout range to 100mm 180mm

General Information

Model Number	W45004SCW

Colour and Finish

Colour	White

WELS Information

Average Litres Per Flush	3.5 ltr
Full Flush	4.5 ltr
Half Flush	3 ltr
Licence Number	0001
Registration Number	L03586
Star Rating	4 Star
Water Consumption	3.5 ltr/min

WELS

Rating	4 Star Rating
Measure	4.5/3,3.3 Average Ltrs Per Flush
Measure	4.5 Litres Per Full Flush
Measure	3 Litres Per Half Flush

Learn about our Product Quality Guarantee

Installation Instructions - Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star)

Installation Instructions - Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star) View

RFA - Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star) Download

Specification, Manuals & Installation

Installation Instructions - Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star)

Installation Instructions - Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star) View

2D/3D Models

RFA - Stylus Venecia Close Coupled S Trap Bottom Inlet Toilet Suite Standard Close Seat White (4 Star) Download

Warranty

GWA Warranty & Care AU

GWA Warranty & Care AU View
