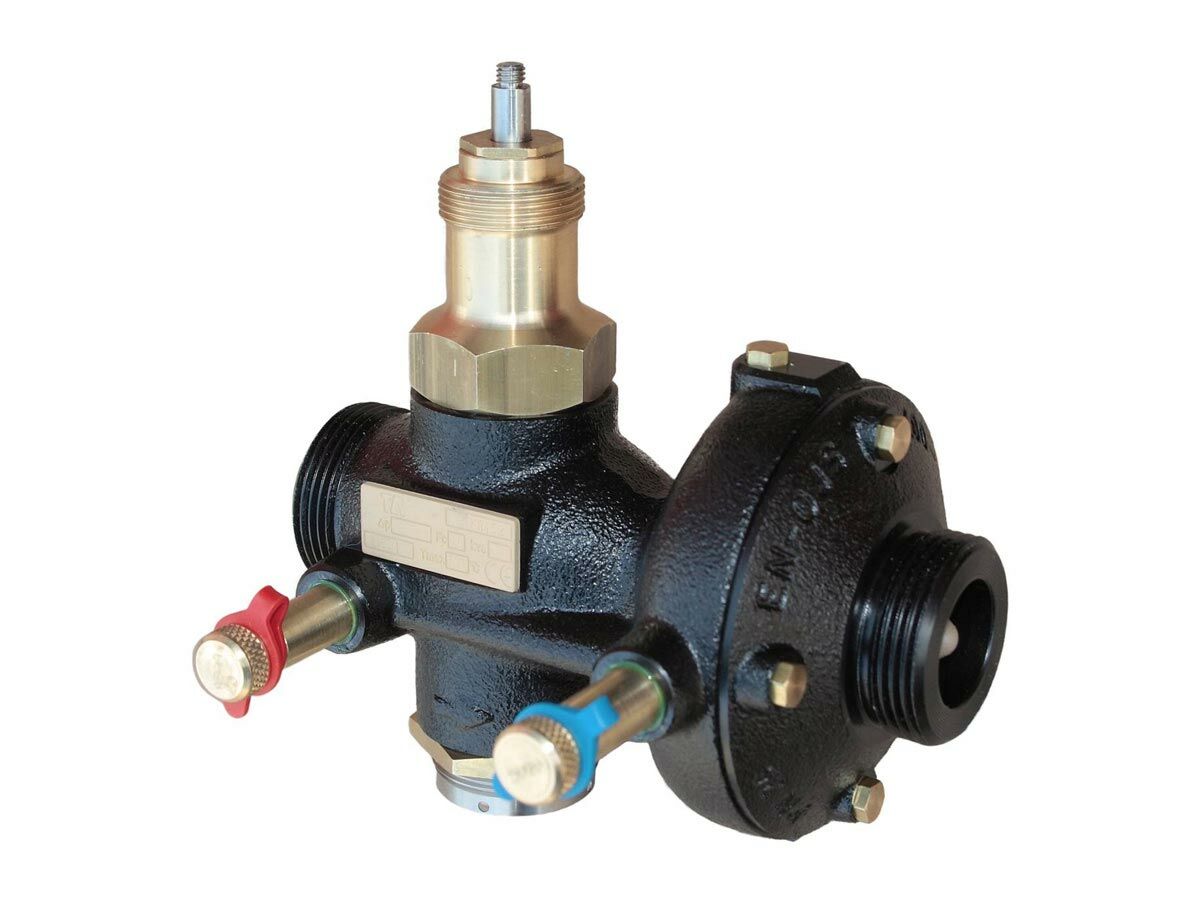

TA KTM 512 PN25 Low Flow 25/32mm
Product code:
1020903
View Product Specifications
Product Specifications
Warranty Information
Documents and Downloads
Back
Line Drawing Dimensions
B
90mm
D
97mm
d
G1 1/4
H
53mm
H1
94mm
L
150mm
Size and Dimensions
Size
25/32mm
Weight
2 kg
General Information
Part Number
52796225
Valve Application
Heating and cooling systems
Material
Body Material
Ductile Iron
Technical Information
DN Size
25/32
VBIS Tag
ME-Va-Con
Pressure Information
Maximum Differential Pressure
1600 kPa
Pressure Rating
PN25
Temperature Information
Minimum Continuous Working Temperature
-10 deg C
Max Working Temp - with Measuring Points
120 deg C
Warranty
Product Warranty
12 Months
Learn about our
Product Quality Guarantee
Specification, Manuals & Installation
Specificiation Sheet - IMI KTM 512 Valves
