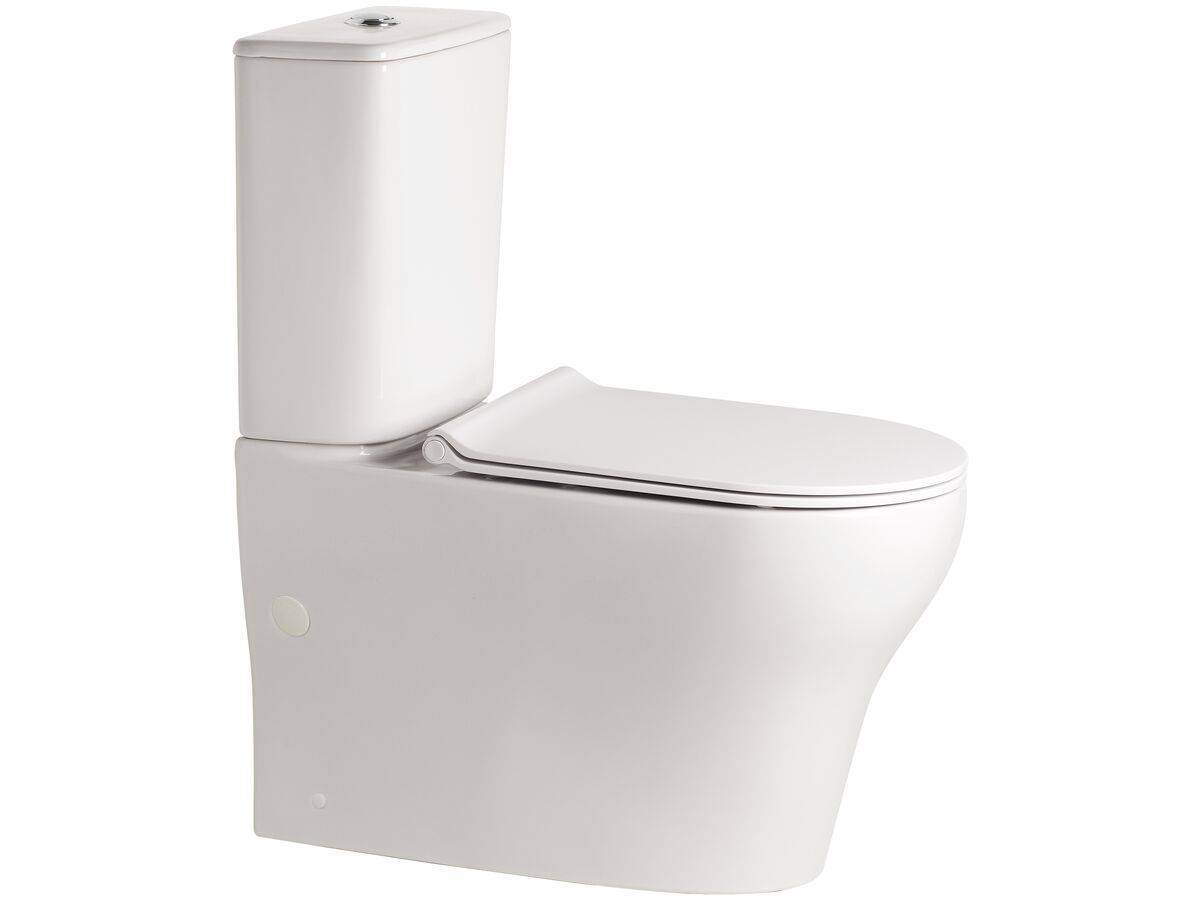

American Standard Cygnet Hygiene Rim Close Coupled Back to Wall Bottom Inlet Toilet Suite with Soft Close Quick Release Seat (4 Star) from Reece

American Standard Cygnet

Our favourite toilet now comes with an updated sleek design with an inviting yet modern and sophisticated look and feel. Bringing you " Hygiene Rim" a rimless bowl for ease of cleaning while powered by Double Vortex Flushing technology for maximum flushing performance. The American Standard Cygnet Hygiene Rim Back To Wall Toilet Suite features a soft close quick release thin seat and new low profile cistern top to match.

Features	-Double Vortex maximum flushing performance, minimum water usage -Comfort Curve Soft Close Seat Quiet Closing with easy release -Rimless Clean Hygienic and easy to clean -Dual Flush
Cistern Type	Back to Wall & Close Coupled
Toilet Configuration	Back to Wall & Close Coupled
Rim Configuration	Hygiene
Mounting	Floor
Seat Type	Soft Close & Quick Release
Pan Outlet Type	P Trap & S Trap
Water Inlet Position	Bottom - Reversible Left or Right
Seat Colour	White
Primary Material	Vitreous China
Pan Material	Vitreous China
Cistern Material	Vitreous China
Width	381 mm
Height	807 mm
Pan Height	400 mm
Pan Projection	680 mm
Pan Width	360 mm
Length from Bolts to Front of Pan	450 mm
Pan Internal Width	280 mm
Pan Internal Length	346 mm
P Trap Setout	190 mm
S Trap Minimum Setout	140 mm
S Trap Maximum Setout	260 mm
Weight of Cistern	12 kg
Weight of Pan	45 kg
Cistern Included	Yes
Seat Included	Yes
WELS Registration Number	L05718
Water Efficiency Star Rating	4 Star
Average Litres per Flush	3.2 L
Full Flush	4.68 L
Half Flush	2.81 L

Domestic Use	10 Years
Commercial Use	1 Years
Spare Parts & Labour	1 Years
Warranty Information	For full warranty terms and conditions please refer to the American Standard Warranty document
