Tomson  15mm Tempering Valve

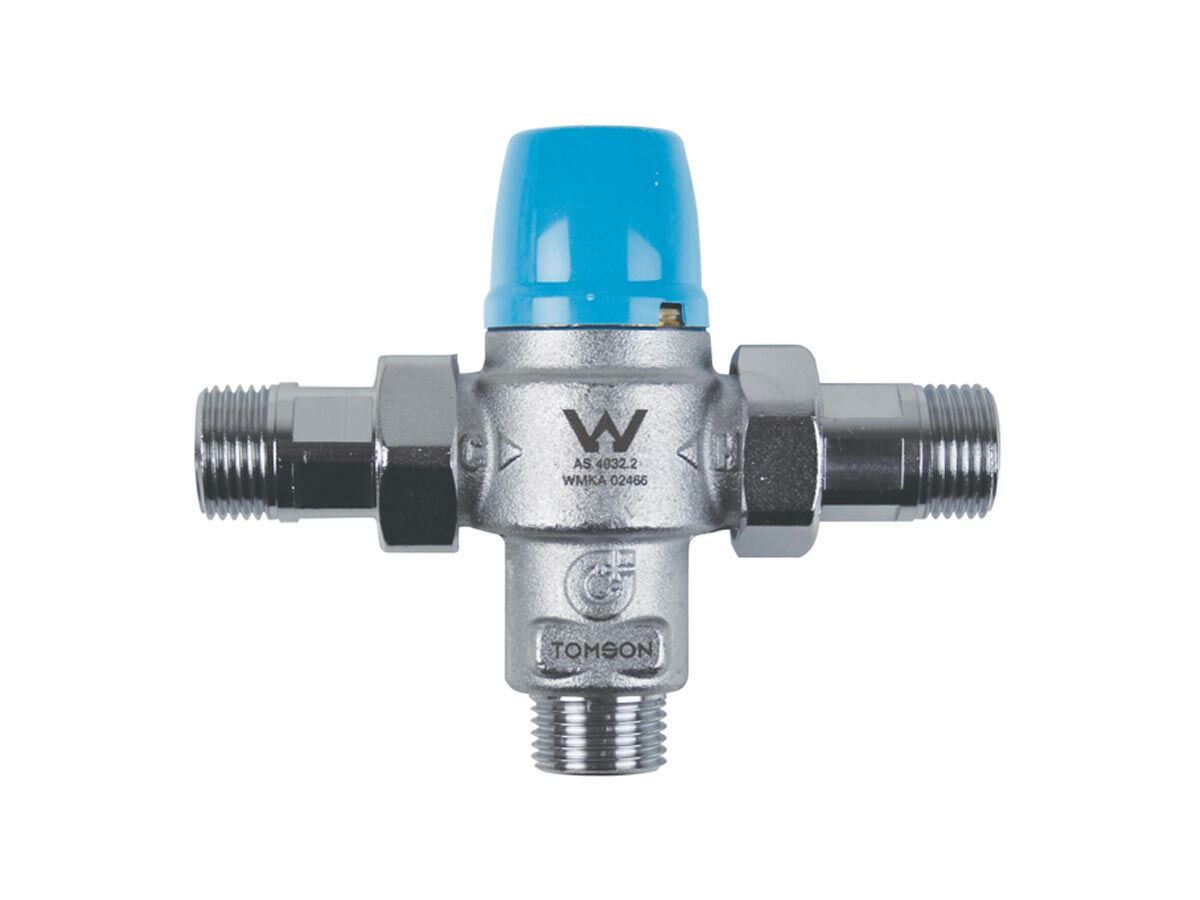

Tomson Standard Tempering Valve 15mm

Product Code: 109210

to see your account pricing

2

Years

Product Warranty

Product Summary

Tomson tempering valves are a safe, simple and economical solution to providing warm water for personal hygiene and bathing in domestic mains pressure water heater installations.

Specifications

Material
Body Material DZR alloy
Technical Information
Application The tempering valve is used to regulate the set temperature of mixed hot and cold water even when variations occur in the water supply conditions for storage gas and electric hot water units.
Min. flow rate for stable operation 4 ltr/min
Standards AS4032.2, LN:WMKA2466
Pressure Information
Maximum Continuous Working Pressure 1400 kPa
Temperature Information
Minimum Hot Inlet Temperature 55 deg C
Maximum Hot Inlet Temperature 85 deg C
Minimum Cold Inlet Temperature 5 deg C
Maximum Cold Inlet Temperature 30 deg C
Temperature Control ±3 deg C
Size and Dimensions
Size 15mm
Size Options 15mm & 20mm

Warranty

Warranty
Product Warranty 2 Years
