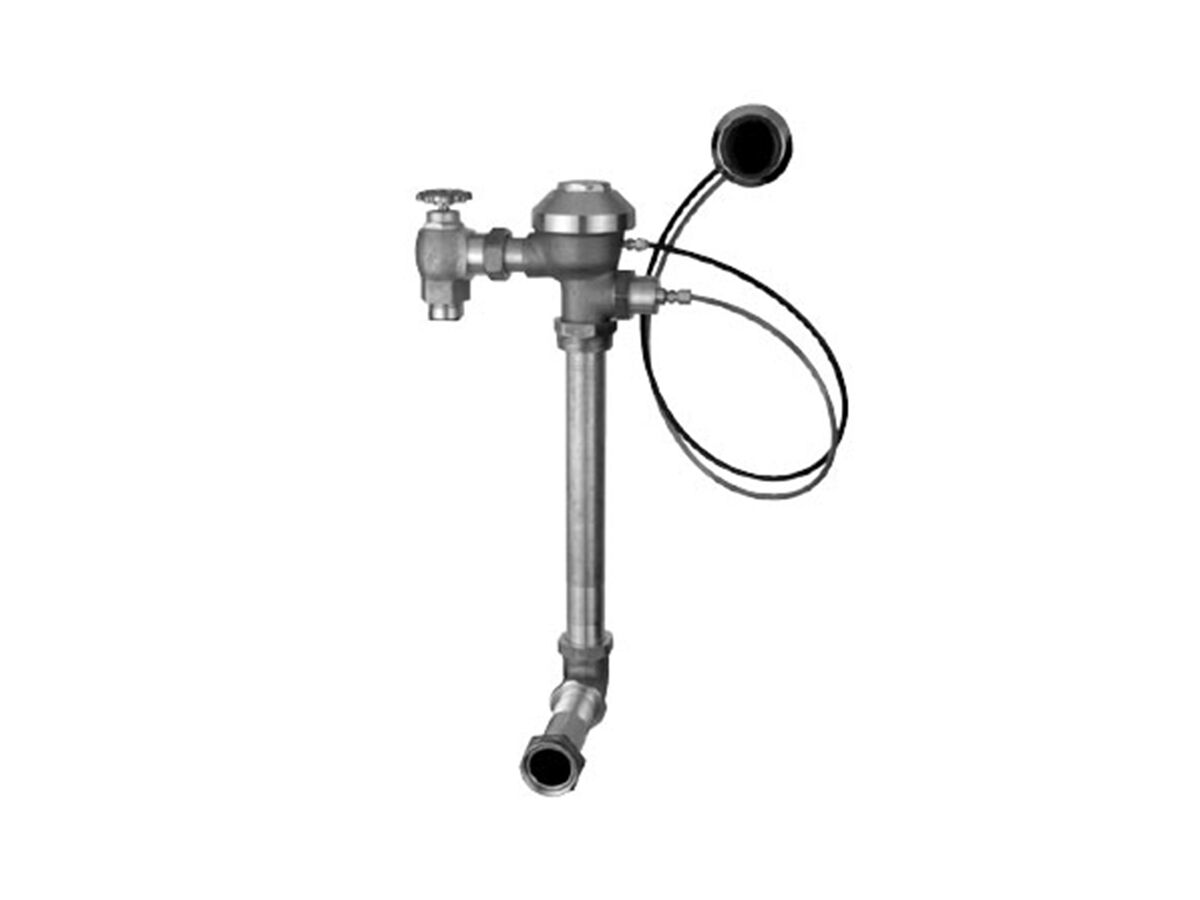

Zurn Hydraulic Concealed Mains Pressure Flush Valve to suit back entry slab single urinals (3 Star)

Product code: 4000498

Zurn

Zurn ZH-6140XL hydraulic concealed flush valve to suit back entry slab single urinals on mains pressure. One flush valve required for every 1.8 metres of urinal length to AS 3500.1.2.1995 Table 9.2

Features

	Watermarked Approved - WM-00307
	Flush volume - 2 litres
	Flow rate required - 1.5 litres per second
	Inlet connection - 25mm BSP
	Flush valve outlet suits 40mm flush pipe
	Optimum pressure for flush valve is 250kPa, achieved by Wilkins #600/NR3 series or Zurns ZPR pressure reducing valves.

General Information

Part Number	ZH-6140XL
Product Type	Flush Valve

Pressure Information

Maximum Supply Pressure	500 kPa
Minimum Supply Pressure	175 kPa

WELS Information

Litres per flush per stall	1.2 ltr
Licence Number	0025
Registration Number	U00464
Star Rating	3 Star
Water Consumption	1.2 ltr/min

WELS

Rating	3 Star Rating
Measure	1.2 Average Ltrs Per Flush

Learn about our Product Quality Guarantee

Specification, Manuals & Installation

Specification Sheet - Zurn View

Warranty

Warranty - ZURN View
